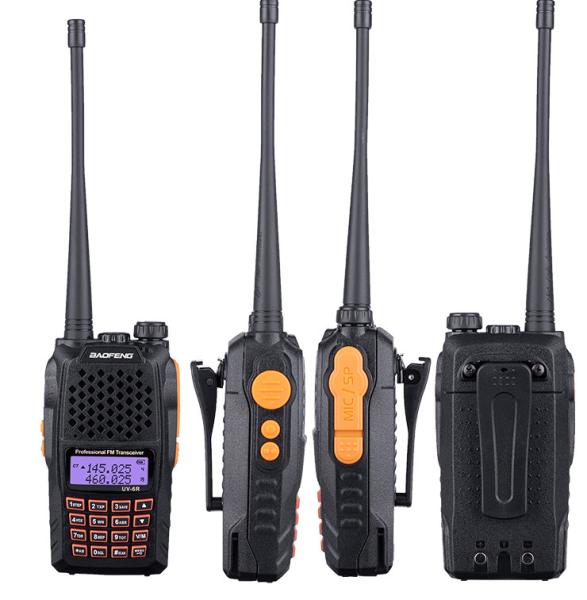

UV 6R Dual Band Two Way Radio VHF / UHF 136-174/400-520 Transceiver
Appearance:
To compare with the UV-5R, the UV-6R optimized the key design of
the main panel, simplified the internal circuit, while also reduced
the number of keys to avoid the wrong operation.
The UV-6R only has 16 Keyboard Buttons which has removed the Band
key, independent of A/B key and EXIT key; the relevant function
keys have been integrated and reorganized, which make the UV-6R
more User-friendly and humanized design.
The keys of UV-6R are made of the material PTT Soft rubber instead
of ABS material (UV-5R) which made the user more comfortable when
pressing the keys.
Speaker:
The UV-6R is with a 16 ohm high-impedance speaker. The sound is
more sonorous by comparing with the other 8 ohm speaker which will
help with the voice launch and transmission.
Flashlight:
The UV-6R has the straw LED lamp which is relatively higher lumens
than ordinary LED in UV-5R. The high brightness straw LED lights
provide a brighter and further range for alarming or illuminating
than the UV-5R.
Antenna:
The UV-6R has a 15cm antenna which is 3cm longer than the UV-5R's
12cm antenna. Increasing the length enables the UV-6R to perform
better in sending and receiving radio wave and signals than UV-5R.
In addition, the antenna material of UV-6R is multiple solid steel
wire winding copper plating which is of higher efficiency compared
to the UV-5R hollow wire in transmission and reception.
Battery:
The UV-6R is continuing using the BL-5 batteries, except that the
UV-5R need to push and removal the battery from the top of radio
and the UV-6R has a new design clip-on removal in the bottom of the
radio. The new design is more convenient for the users and
preventing the battery fall out by inadvertently operate. Also,
there is non-slip design for the back of the battery shell which
making it more convenient to use.
FEATURES AND FUNCTIONS
1. 16CHs which can memory 128 groups frequency
2. Voice Guide for channel order and its working frequency
3. Double PTT design for TX when signal got
4. 1750Hz burst tone for repeater function
5. Li-ion batterypack with 1500mAh high capacity
6. 105 DCS 50 CTCSS
6. Wire clone function
7. VOX available
8. H/L power switchable
9. Battery Save
10. Time out timer
11. PC programmable
