    QYT KT-980Plus 75W VHF 55W UHF Dual Band Mobile Radio

    Ask Lasest Price
    Brand Name : QYT
    Model Number : KT-980Plus
    Certification : CE FCC Rohs Certificate
    Price : USD139.00 /piece
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 50000pcs / year
    Delivery Time : 3-5 days
    • Product Details
    • Company Profile

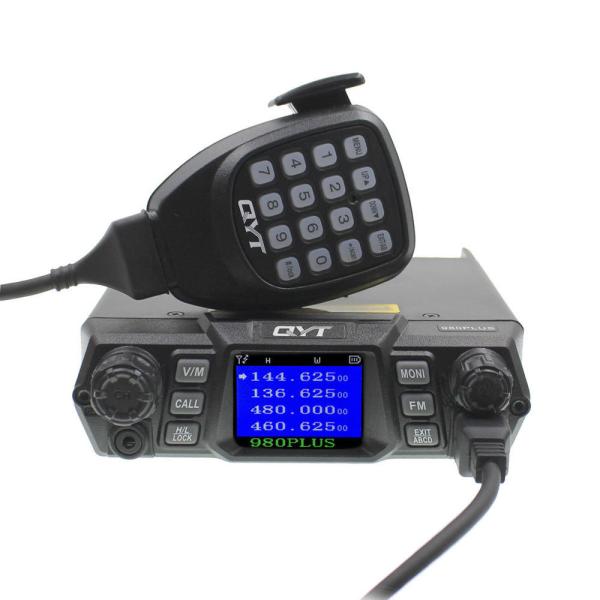

    QYT KT-980Plus 75W VHF 55W UHF Dual Band Mobile Radio

    VHF/ UHF High power 75W dual band car mobile QYT KT-980plus two way radio base radio vehicular interphone



    Specification:

    Frequency Range136-174MHz ,400-480MHz
    Number of channels200
    Channel spacing25KHz/ 20KHz/12.5Khz
    Phase lock step step2.5KHz/5KHz/6.25 KHz/10 KHz/12.5 KHz/25 KHz
    Working voltage13.8V DC±15%
    Squelch wayCARRIER/CTCSS/DCS/5Tone/2Tone/DTMF
    Frequency stability±2.6ppm
    Operat temperature-20+60℃
    Dimension140(W)*43(H)*172(D)mm
    Weight103g

    Receive(ETSI EN 300 086 Standarddized.Test)

    BroadbandNarrow Band
    Sensitivity≤0.25μν≤0.35μν
    Channel Cholce≥70db≥60db
    Intermodulation≥65db≥60db
    Spurious Rejection≥70db≥70db
    Audio Response+1~~3db(0.3~3KHz)+1~~3db(0.3~2.55KHz)
    Signal to noise radio≥45db≥40db
    Audio Distortion≤5%
    Audio output power≥2W@10%

    Transmit(ETSI EN 300 086 Standarddized.Test)

    WidebandNarrow Band
    Output PowerVHF 75W(15A)/UHF 55W(10A)
    Modulation Mode16KΦF3E11KΦF3E
    Channel Power≥70db≥60db
    Signal to noise radio≥45db≥40db
    Parasitic Harmonic≥60db≥60db
    Audio Response+1~~3db(0.3~3KHz)+1~~3db(0.3~2.55KHz)
    Audio Distortion≤5%
