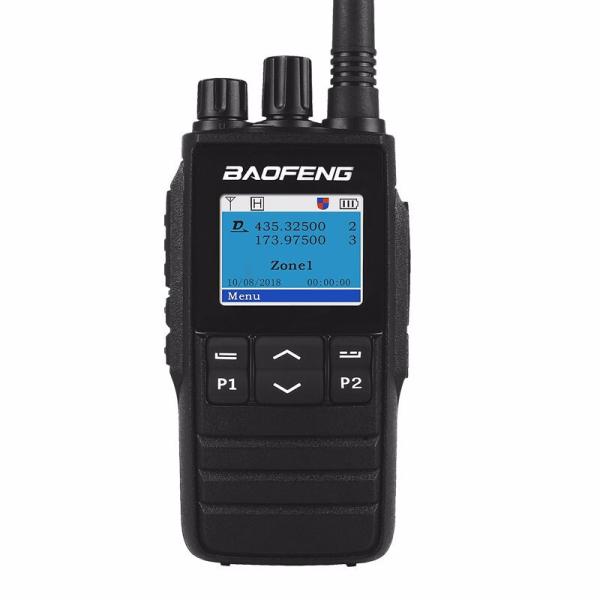

    Ham Radio Transceiver Digital Radio Walkie Talkies DM-1703 DMR Dual Band Wokey Tokye

    Ask Lasest Price
    Brand Name : baofeng
    Model Number : DM-1703
    Certification : CE FCC Certificate
    Price : USD55.00
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 5000pcs /month
    Delivery Time : 3-5 days
    • Product Details
    • Company Profile

    Ham Radio Transceiver Digital Radio Walkie Talkies DM-1703 DMR Dual Band Wokey Tokye


    Ham Radio Transceiver Digital Radio Walkie Talkies DM-1703 DMR Dual Band Wokey Tokye

    Product Description

    Ham Radio Transceiver Digital Radio Walkie Talkies DM-1703 DMR Dual Band Wokey Tokye

    General
    Frequency RangeVHF136-174MHz UHF:400-470MHz
    Channel Capacity4000 channels*
    Digital Contact800 (+130000.csv)
    Channel Spacing25KHz(Wide Band), 12.5KHz(Narrow Band)
    Phase-locked Step5KHz, 6.25KHz
    Frequency Stability±2.5ppm
    Operating VoltageDC7.4V±20% /(2000mAh)
    Operating Temperature-20℃~+55℃
    Size125×61×36mm(with battery pack)*
    Weight282g (with battery pack, antenna)*
    Receiving Part
    Wide bandNarrow band
    Analog Sensitivity(12dB SINAD)≤0.25uV≤0.35uV
    Digital Sensitivity

    0.3uV/-117.4dBm(BER≤5%)

    0.7uV/-110dBm(BER≤1%)

    Adjacent Channel Selectivity≥70dB≥60dB
    Spurious Emission≤-57dB≤-57dB
    Spurious Rejection≥70dB≥70dB
    Hum & Noise≥45dB≥40dB
    Blocking84dB
    Audio Distortion≤5%
    Audio Power Output1W/16Ω
    Audio response+1~-3dB
    Inter modulation≥62dB≥58dB
    Transmitting Part
    Wide bandNarrow band
    Power OutputHigh:5W Low:1W
    Adjacent Channel Power≥70dB≥60dB
    FM Modulation±5.0KHz@25KHz±2.5KHz @12.5KHz
    4FSK Digital Modulation

    12.5KHz(data)7K60FXD

    12.5KHz(data+voice)7K60FXE

    Audio Distortion<5%
    Hum & Noise≥40dB≥36dB
    Error rate≤3%
    9KHz-1GHz: ≤-36dBm 1GHz-12.75GHz: ≤-30dBm

    Digital protocol


    ETSI-TS102 361-1,-2,-3
    Type of vocoderAMBE+2 TM


    Shipping terms:


    1-5 business days for sample order

    5-10 business days for medium order
    10-15 business days for OEM order
    Delivery can be Express:DHL,UPS, FedEx, EMS, TNT; shipping logistic etc & post office for samples
