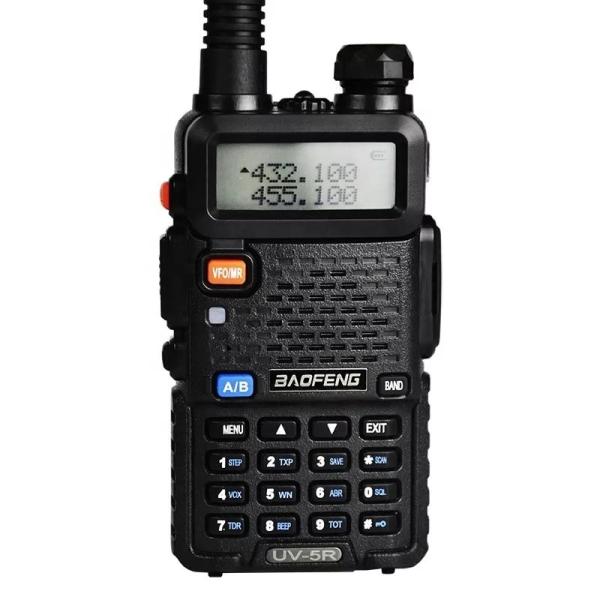

Baofeng Uv-5r Walkie Talkie 5W Dual Band Portable Radio 128 Channels

Ask Lasest Price
Brand Name :	baofeng
Model Number :	5R
Price :	USD16.00
Payment Terms :	L/C, T/T, Western Union, MoneyGram
Supply Ability :	5000pcs /month
Delivery Time :	3-5 days

Add to Cart

Product Details
Company Profile

Baofeng Uv-5r Walkie Talkie 5W Dual Band Portable Radio 128 Channels

Baofeng Uv-5r Walkie Talkie 5W Dual Band Portable Radio 128 Channels

Features:

1) Output : 5W/1W

2) Frequency Range: 136.00-174.00 MHz 400.00-520.00MHz

3) Frequency Step Setting

4) High &Low Power Switchover

5) Battery Saving

6) VOX Function

7) Wide/Narrow Band Selection

8) Auto-Back Light

9) Dual Band Standby

10) Time-out Timer (TOT)

11) 50 CTCSS and 104 DCS Codes

12) Voice Prompt

13) ANI Code

14) PC or Manual Program

15) DTMF Code

16) PTT-ID

17) AUTO Keypad Lock

18) Busy Channel Lock Function

19) Dual Band, Dual Display and Dual Standby

20) Emergency Alarm

21) Priory Scanning Function

22) Relay Forwarding Confirmed (1750 HZ)

23) Low Battery Warning

24) U/V Cross Band Dual Watch

25) Dimension: 110x58x32mm

Specifications

General
Frequency Range	VHF136-174MHz UHF400-520MHz
Channel Capacity	128
Operating Voltage	7.4V DC ±15%
Antenna Impedance	50Ω
Channel Spacing	2.5/6.25/10/12.5/20/25kHz
Working Temperature	-20 °C - +60 °C
Frequency Stability	±2.5 ppm
Size (Without Antenna)	110(W)mmx58(L)mmx32mm(D)
Weight(With Battery)	about 250g
Battery Capacity	1800 mAh(Li-ion)
Battery Life(5-5-90 duty cycle)	About 12 hours
Transmitter
RF Power Output	4W/1W
Modulation Type	F3E
Audio Distortion	≤ 5%
Transmitting Current	< 1.3A
FM Noise	45dB(W)/42dB(N)
Spurious Emission	65dB
Receiver
Sensitivity(12Db SINAD)	≤0.20μV
Selectivity	60dB/55dB
intermodulation	≥65dB
Adjacent Channel Selectivity	≥65dB
Spurious Response	≥60dB
FM Noise	30dB/40dB
Audio Power Output	1000mW
Audio Distortion	≤5%
