High Tech UHF Security Two Way Radios , Handheld Walkie Talkie BaoFeng Radio BF-K5

Product Categories

Xiamen Rongxiangrui Imp. & Exp. Co., Ltd

Contact Now

Name: High Tech UHF Security Two Way Radios Handheld Walkie Talkie BaoFeng Radio BFK5
Brand: baofeng
Price: 8.00 USD

Add to Cart

Product Description

1) Output: ≤5 W

2) Frequency Range: 400.00-470.00 MHz

3) PC Program

4) FM Radio Function

5) Voice Prompt

6) 39 CTCSS and 83 DCS Codes

7) Battery Saving

8) VOX (Voice Operated Transmitting)Function

9) Busy Channel Lock

10) Low Battery Warning

11) Over Voltage or Low Voltage Protection

12) Emergency Alarm

13) Channel Monitor

14) TOT (Time-out Timer)

15) Chinese/English Switch

16) High &Low Power Switchover

17) Noise Reduction

18) Scrambler Function

19) Scanning Function

20) STE Function

21) Dimension: 123x60x36 mm

22) Packing Details: 30 Units/CTN, Carton Size: 52.5x33x67 cm N.W: 22.5 KGS G. W: 23.5 KGS

Features:
Unity Section:
Frequency Range:	400.00- 470.00MHz
Storage Channel	16
Rated voltage	DC 7.4 V
Battery Capacity	H-1500 mAh
Battery Life	About 8 Hours
Frequency Stability	±2.5ppm
Work Temperature	-20 ℃ to +60℃
Frequency Combination	PLL frequency synthesis
Antenna Impedance	50 Ω
Wok Mode	Same Frequency simplex Operation or
Wok Mode	Different Frequency simplex Operation
Dimension	123x60x 36mm (Excluded Antenna)
Transmitter
Output Power	≤5 W
Modulation Mode(W/N Band)	FM (F3E)
Maximum Frequency Deviation (W/N Band)	<5KHz(W), <2.5KHz(N)
Spurious Power	≤7.5 µW
Adjacent channel power	65dB (W) ,55dB (N)
Spurious Radiation	<-60 dB
Audio Distortion	<5 %
SNR	-52dB(W), -48dB(N)
CTSCC/DCS Frequency Deviation(W/N Band)	0.7±0.1KHz (W), 0.4±0.1KHz (N)
Modulation Sensitivity	8-12mV
Transmitting Current	≤1200mA
Receiver
Sensitivity	<0.20 µ V (12dB SINAD)
Audio Power	1 W
Inter modulation Interference Resistance	≥65dB (W), ≥55dB (N)
Adjacent channel Sensitivity (W/N Band)	≥65dB (W), ≥55dB (N)
Audio Distortion	5%
Receiving Current	≤ 400m

Product Images

Various Occasion Different Range

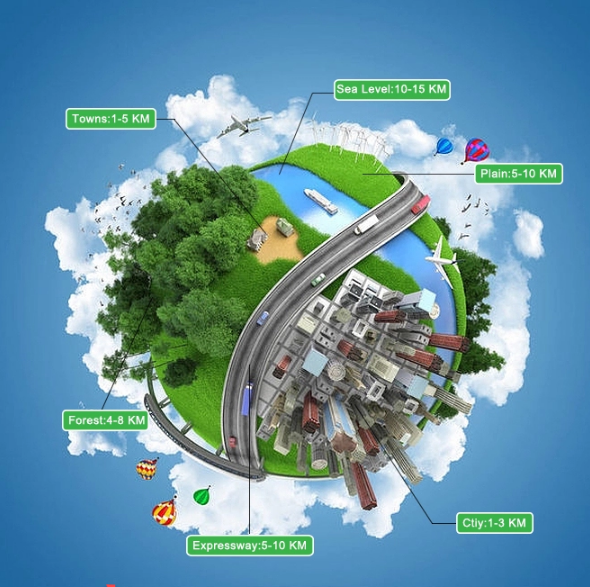

Distance Depends On Environment
