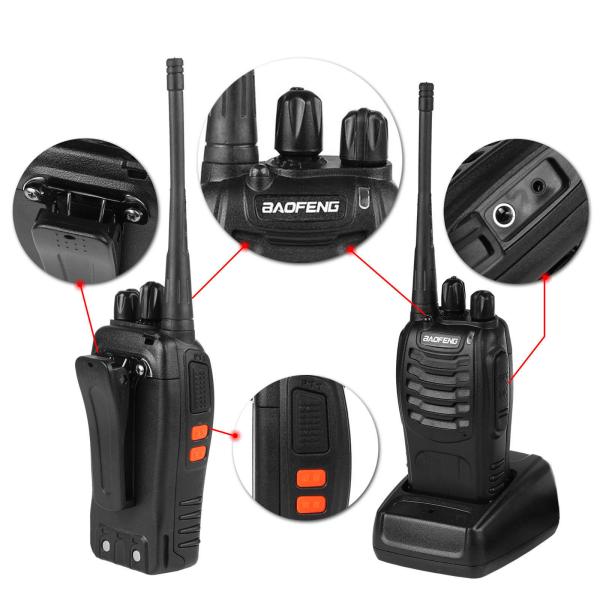

Brand Name : | baofeng |
Model Number : | BF-888s |
Certification : | CE FCC Rohs Certificate |
Price : | USD12.00 /piece |
Payment Terms : | L/C, , T/T, Western Union |
Supply Ability : | 50000pcs / year |
Delivery Time : | 3-5 days |
1)Output: ≤ 5W
2)16 Channels
3) Frequency Range: 400.00-470.00 MHz
4) PC Programmable
5) Voice Prompt
6) Power-saving features to extend battery life
7) VOX (Voice Operated Transmitting) Function
8) Busy Channel Lock
9) Low Battery alarm
10) Over Voltage or Low Voltage Protection
11) Emergency Alarm
12) Channel Monitor
13) TOT (Time-out Timer)
14) Chinese/English Switch
15) CTCSS/DCS function
16) Noise Reduction
17) Scrambling Function
18) Scanning Function
19) FM Radio Function
20) High Illumination Flashlight
21)Range up to 3 miles (5 km) depending on environment and terrain
General | |
Frequency Range | UHF 400-470MHz |
Channel Capacity | 16 |
Channel Spacing | 25KHz |
Operated Voltage | 3.7 V |
Battery | 1500MAh Li-ion |
Battery Life | (5-5-90 duty cycle) About 9 hours |
Frequency Stability | ±2.5ppm |
Operated Temperature | -20°c-+60°c |
Antenna Impedance | 50Ω |
Dimensions (L×W×H) (with battery, without antenna) | 80×45×28 mm (without antenna) |
Weight (with battery/antenna) | 140g |
Communication Range | About 2-5km |
Receiver | |
Sensitivity (12dB SINAD) | ≤0.20 uV |
Intermodulation | ≥65dB |
Adjacent Channel Selectivity | ≥60dB |
Spurious Response | ≥60dB |
FM Noise | 45dB/40dB |
Audio Power Output | 1000mW |
Audio Distortion | ≤5% |
Standby Current | 15mA |
Transmitter | |
RF Power Output | ≤5W |
Modulation | F3E |
Spurious Emission | ≤65dB |
FM Noise | ≤-45dB(W) ≤-40dB (N) |
Audio Distortion | ≤5% |
Transmitting Current | ≤1.3A |
![]() |
